The SAP batch access method enables communication between an external SAP system and Workload Automation and provides a single point of entry for automating the launching of jobs, monitoring the status of jobs, and managing exceptions and recovery.

“ …Which are the steps you need to follow to setup faster your Workload Automation environment to the target SAP system?…”


sap hana

In details we have the following schema:

internal sap function modules

Workload Automation can use the Gateway Service, listening on port 33XX where XX is the instance number, to connect to a given Application Server instance.

sap system xyz

Object Description Authorization
S_RFC Auth. check for RFC access S_RFC_ALL
  • S_RFC Authorization check for RFC access
  • Activity: full authorization
  • Name of RFC to be protected: full authorization
  • Type of RFC object to be protected: full authorization


In SAP environment you must:

  • Creating a Workload Automation RFC user with one of the following attributes: CPIC, Communications, or DIALOG, depending on the SAP release.
  • Create the authorization profile with PFCG profile generator

Perform the following steps:

  1. Write a name, for example ZTWS, in Role Name.
  2. Click Create Role and write a description for the role, such as “Role for the TWS user.”
  3. Save the role.
  4. Select Authorizations.
  5. Click Change Authorization Data.
  6. In the pop-up, select Templates.
  7. Manually add the following authorization objects:
Object Description
S_ADMI_FCD System authorizations
S_APPL_LOG Application logs
S_BTCH_ADM Background processing: Background administrator
S_BTCH_JOB Background processing: Operations on background jobs
S_BTCH_NAM Background processing: Background user name
S_PROGRAM ABAP: Program run checks
S_DEVELOP ABAP Workbench: full authorization to modify objects of type PROG
S_LOG_COM Authorization to run external commands
S_RFC Authorization check for RFC access
S_RZL_ADM CCMS: System Administration
S_SPO_ACT Spool: Actions
S_SPO_DEV Spool: Device authorizations
S_XMI_LOG Internal access authorizations for XMI log
S_XMI_PROD Authorization for external management interfaces (XMI)


8. Fill in the values according to the following scheme:

Object Description
S_ADMI_FCD System authorizations

o   System administration function: Full authorization

S_APPL_LOG Activity: Display

o   Application log Object name: Full authorization

o   Application log subobject: Full authorization

S_BTCH_ADM Background processing: Background administrator

o   Background administrator ID: Full authorization

S_BTCH_JOB Background processing: Operations on background jobs

o   Job operations: Full authorization

o   Summary of jobs for a group: Full authorization

S_BTCH_NAM Background processing: Background user name

o   Background user name for authorization check: Full authorization

S_PROGRAM ABAP: Program run checks

o   User action ABAP/4 program: Full authorization

o   Authorization group ABAP/4 program: Full authorization

S_RFC Authorization check for RFC access

o   Activity: Full authorization

o   Name of RFC to be protected: Full authorization

o   Type of RFC object to be protected: Full authorization

S_RZL_ADM Activity: Full authorization
S_SPO_ACT Spool: Actions

o   Authorization field for spool actions: Full authorization

o   Value for authorization check: Full authorization

S_SPO_DEV Spool: Device authorizations

o   Spool – Long device names: Full authorization

S_XMI_LOG Internal access authorizations for XMI log

o   Access method for XMI log: Full authorization

S_XMI_PROD Authorization for external management interfaces (XMI)

o   XMI logging – Company name: ABC*

o   XMI logging – Program name: MAESTRO*

o   Interface ID: Full authorization

  1. Save the authorizations.
  2. Generate a profile. Use the same name that you wrote in Role Name.
  3. Exit the authorization management panel and select User.
  4. Add the Workload Scheduler user to the role.
  5. Save the role.
  • Copying correction and transport files


SAP UNICODE NW 7.1, or later:

  • K900044.TV1 (for standard jobs scheduling)
  • R900044.TV1 (for standard jobs scheduling)
  • K900751.TV1 (for IDoc monitoring and job throttling)
  • R900751.TV1 (for IDoc monitoring and job throttling)


SAP Transport Request contains 2 files:
first one starts with “R” character and second one stars with “K” character.
First one should be placed in server folder:


and second one should be placed in server folder:


From SAPGUI run transaction STMS Go to SAP transaction STMS on your development system and use menu path:

Extras -> Other Requests -> Add

as shown below:


add requests

The following screen will appear as a popup as below.
Enter the Transport Request number (TV1K900044 in my example) and hit enter.


import queue

Transport Request will be added to the queue, now you can select and import it to your system. Installation completed.

In Workload Automation environment you must:

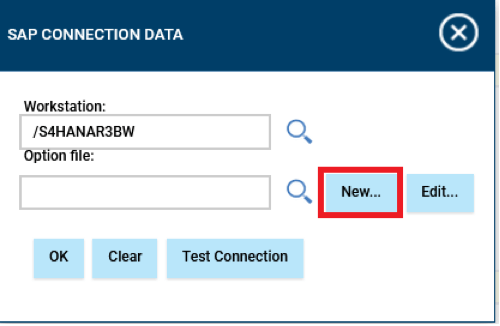

Create your connection settings from “SAP Connection DATA” panel

clicking on New …

sap connection data

Fill the mandatory fields and save it

options editor


Download from SAP support portal the RFC libraries related to the Workload automation platform. [SAP ID required]


software downloads

Searching with RFC key word

sap sdk

You must download based on your SAP release


Check the following SAP notes for details:


2451423 – End of support date for SAP RFC SDK

2573790 – Installation, Support and Availability of the SAP NetWeaver RFC Library 7.50



If you want to determine the exact Patch Level that you have currently installed, you can do so be executing the following OS command on the binary (replace the placeholder <sapnwrfc> with the platform-dependent name of the shared library, e.g. “” on most UNIXs or “libsapnwrfc.dylib” on MacOS):


  • Unix/Linux/MacOS:  strings | grep Patch
  • Microsoft Windows:  findstr Patch sapnwrfc.dll


Unpack the SAP RFC package and copy the libraries present in “lib” folder to Workload Automation “methods” folder, in TWSDATA path, assigning the correct owner and grants

copy paste methods

All is complete now!!!

sap test connection

In case the “Test Connection” is failing the following troubleshooting part will guide into resolution.

question mark

Workload Automation uses the SAP RFC Communication library to connect to SAP.

external system management tool


When the connection fails, SAP RFC library generates a trace file on the working dir (usually <TWSDIR>\methods):

  • trc (and rfcxxxxx_yyyyy.trc) on Windows
  • dev_rfc (and CPICTRCxxxxx) on Unix.


These text files contain the RFC Error message that allows you to understand the problem occurred


To activate the rfc trace you have the following ways:


1) Adding debug and trace options via DWC UI


debug and setting

2) Setting the following variables in the environments.




With the following lines:











Suppose the SAP system (system number: XYZ) has just one ABAP Application Server instance (instance number: 00) with two clients (000 and 100).


Message Server and Gateway Service are listening on ports 3600 and 3300 respectively.

Here it is a most common connection issue due to wrong configuration settings


A. Unknown hostname:

dev rfc

B) Wrong Instances

dev rfc error

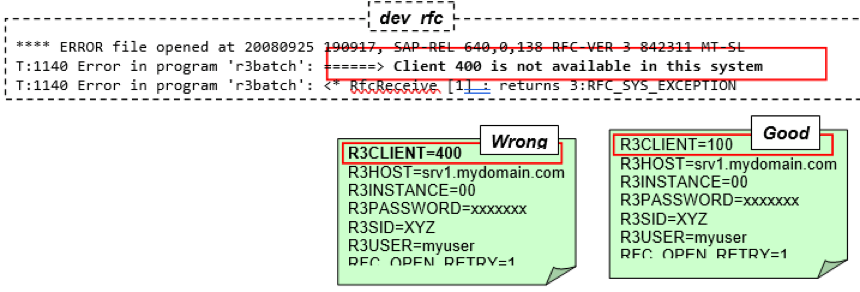

C) Not Existing Client

dev client

D) Wrong Username or password

dev rfc password incorrect

E) Not Existing Logon Group.

dev rfc r3batch

Ensure that the file services

– on UNIX:                 /etc/services

– on Windows:        C:\Windows\system32\drivers\etc\services

contain an entry for the message server port of the SAP system to which r3batch connects. The entry has the following format:

sapmsSID 36system_number/tcp


where: SID is the SAP system ID, and system number is the SAP system number.

RFC_ERROR_COMMUNICATION with error “service sapmsXYZ unknown”

Likely Causes:

  1. The R/3 which you are trying to connect to is down or overloaded.

Please login through the SAPLogon  to check if this works.

  1. The most likely reason could be that the RFC communication service is not maintained for the R/3 system you want to use on the J2EE.


The solution is with respect to Point 2) above

  1. In the file %windir%\system32\drivers\etc\services add an entry

sapms<SID> <PORT>/tcp” (<SID> = R/3 system ID, <PORT> = message server


  1. Run “Update SAPPCADM” in Windows Start / SAPPCADM. This will (among other things) update the above mentioned file with data for SAP internal R/3 systems. This is only for Internal SAP use.


The error only occurs for “load balanced” connections as only these need this message server entry.

F) Wrong System ID

rfc connect server failed
