At HCLSoftware we introduce to you HCL SoFy, the easiest way to deploy your HCLSoftware products in Kubernetes in minutes. Browse our extensive catalog of enterprise software products and rest APIs to develop rich and more powerful applications with enduring value.

We are always working on building new features and upgrading existing ones, as a part of this journey we have now added HCL Workload Automation and HCL Workload Automation Retail Demo Pack in the SoFy’s extensive catalog of enterprise software products.

In this blog, we will take you through a quick demo of HWA on HCL SoFy.

The demo will leverage the power of orchestration to automate the execution of an order management process, based on incoming workloads conditions and according to the different personas involved in the business flow (the business user, the scheduler, the operator and the application architect).

HCL Sofy

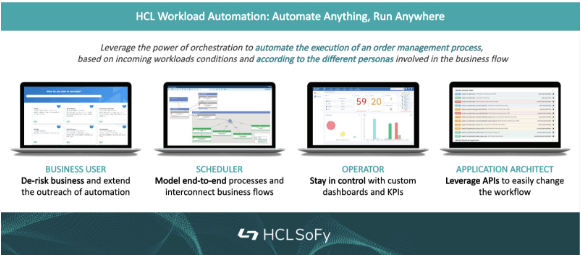

Fig 1: HCL SoFy

The Business User Perspective

As Business User, your mission is to de-risk business and extend the outreach of automation

With the demo, you will learn to:

  • Deploy your HCL Workload Automation cloud native orchestrator in minutes
  • Orchestrate end-to-end business-critical processes
  • Inter-connect your flows with the Automation Hub plugins

What’s the challenge?

Retailers receive orders of various sizes from various order management systems, such as SAP, Oracle, Informatica and more.
Information needs to be analysed, and orders fulfilled.
Order fulfilling is a repetitive process that requires to be reliable, scalable and performed in a timely manner, making the perfect case for automation.

Scenario

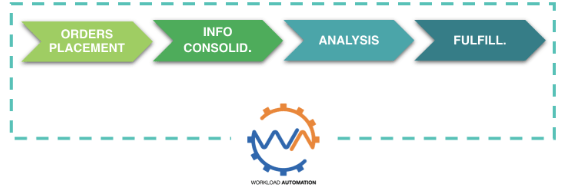

Fig 2 : Scenario

Let’s get started!

Explore HCLSoftware catalog on HCL SoFy and create your solution in minutes. Go to the catalog section and search for HCL Workload Automation and Retail Demo Pack. Select and Add both the software packs, give the solution a name “demopack” and click on create

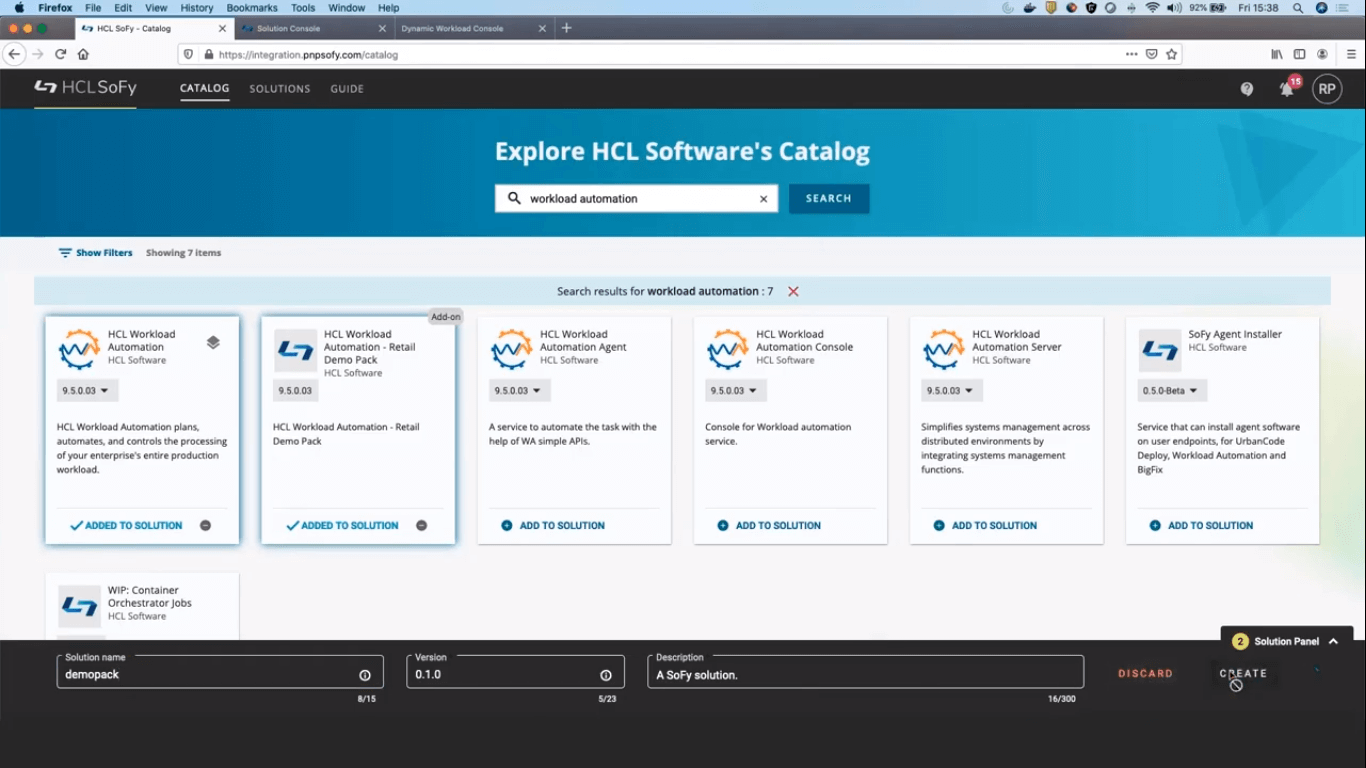

Explore HCLSoftware Catalog

Fig 3: Explore HCLSoftware Catalog

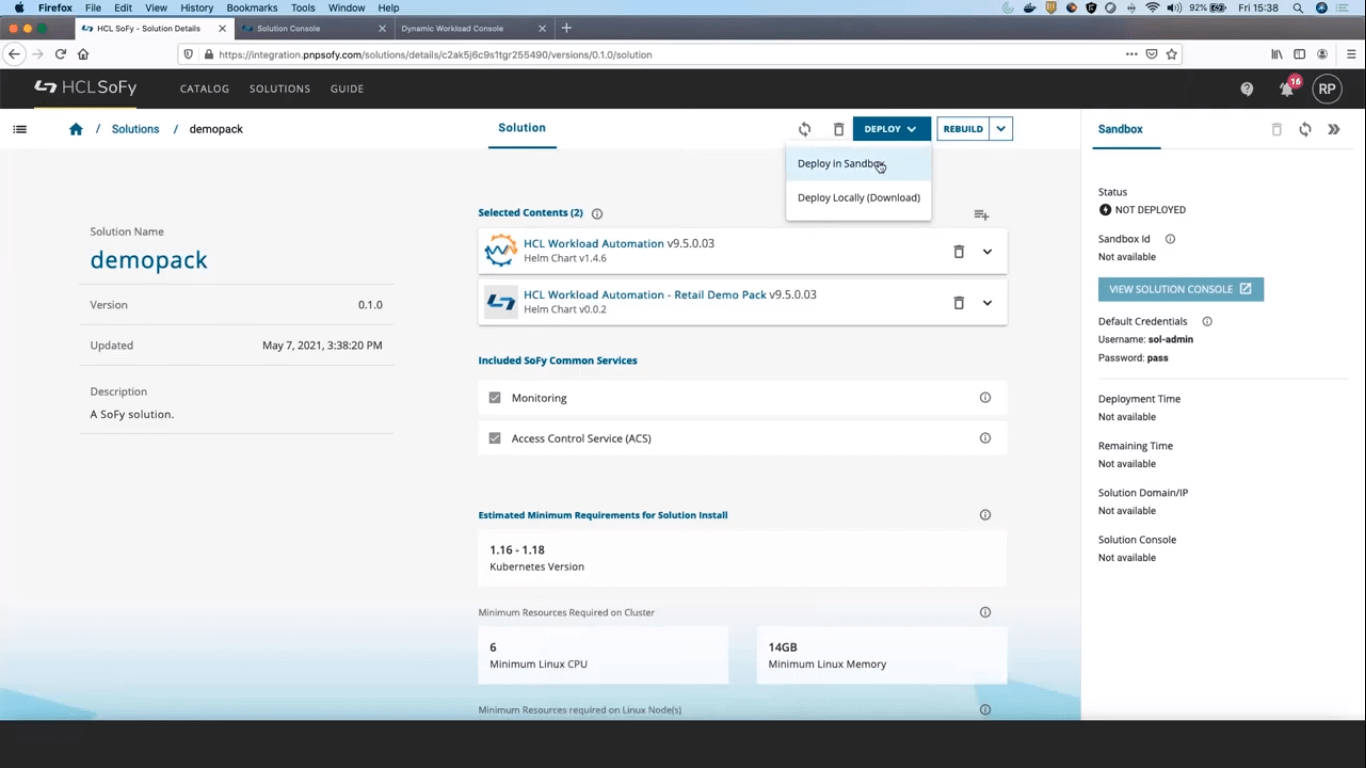

HCL SoFy is all about deploying your cloud native solution on the cloud your own choice in minutes. Once you have given your solution a name, then deploy your solution in SoFy Sandbox and click on “View Solution Console” once the deployment is finished.

Deploy the solution in sofy sandbox mode

Fig 4: Deploy the solution in SoFy Sandbox mode

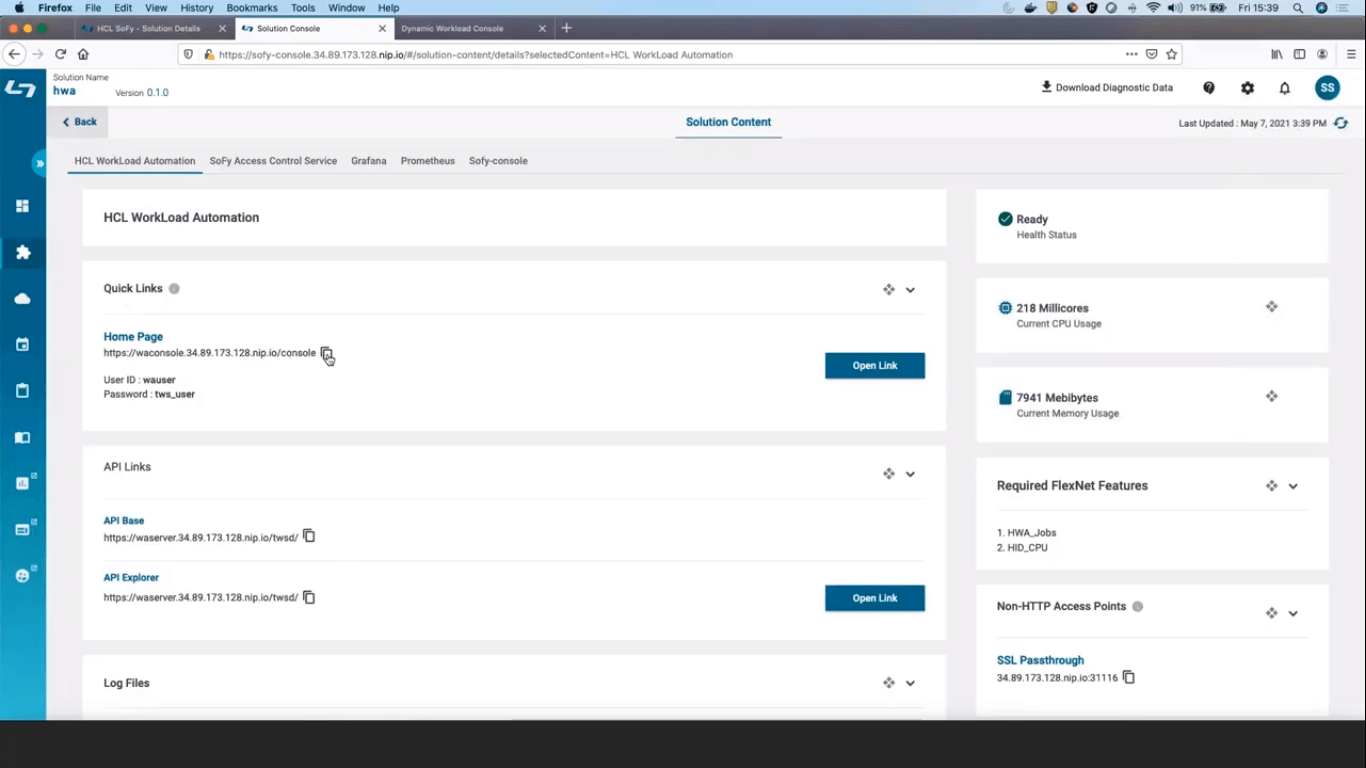

Now let’s login to SoFy Console to get the credentials and link to access Dynamic Workload Console, our web interface to monitor your business-critical processes.

sofy console

Fig 5: SoFy Console

In the Dynamic Workload Console, you can model, plan and monitor your production workload. Customized dashboards and flexible report services along with predictive scheduling capabilities are also available on Dynamic Workload Console to keep a control on the whole process.

Job streams are automated process flows interconnecting different tasks running on different systems, from mainframe to cloud, and in different network zones like a hybrid data center or a public cloud and can be executed on schedule basis or on demand by opening the planning menu and clicking on submit predefined job streams.

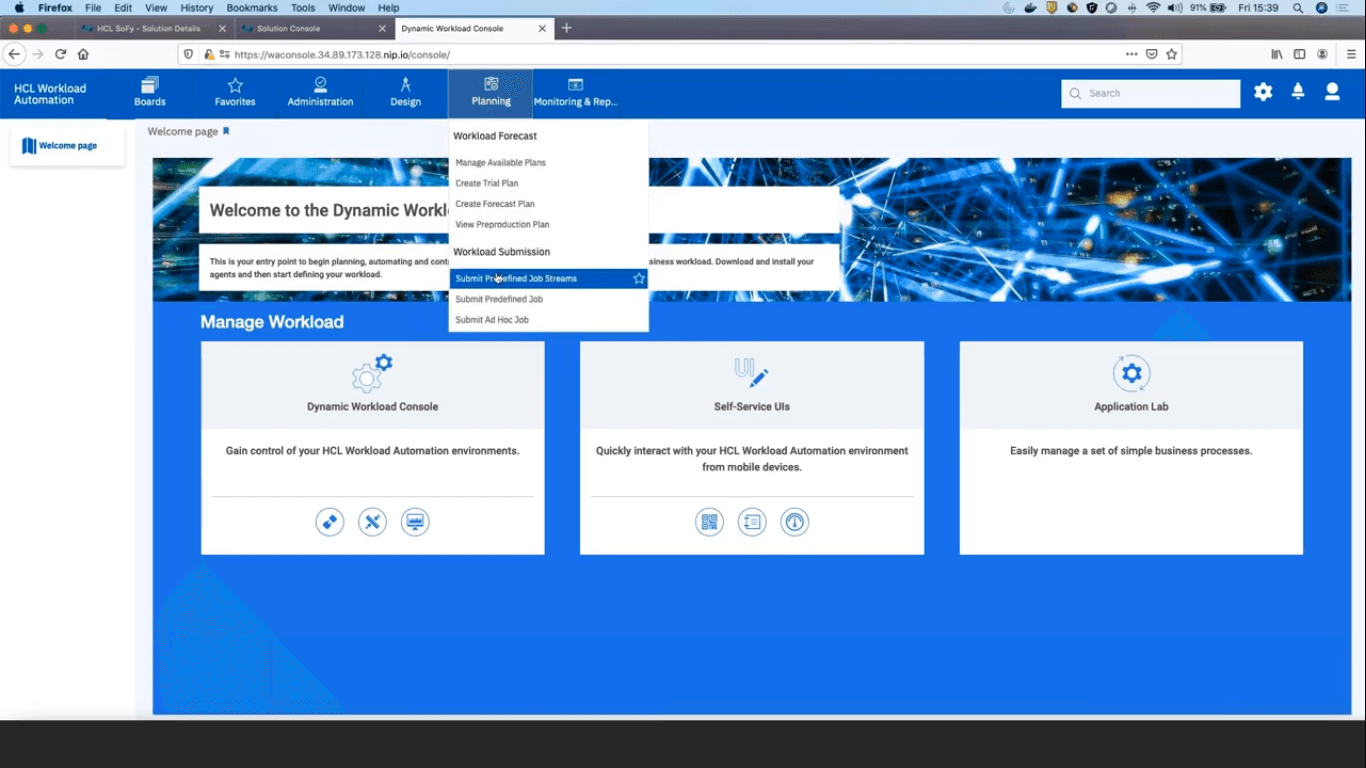

dynamic workload console

Fig 6: Dynamic Workload Console

Search for order_process job stream and submit it. For an effective management and monitoring of the job stream, open the monitoring and reporting menu and select monitor workload.

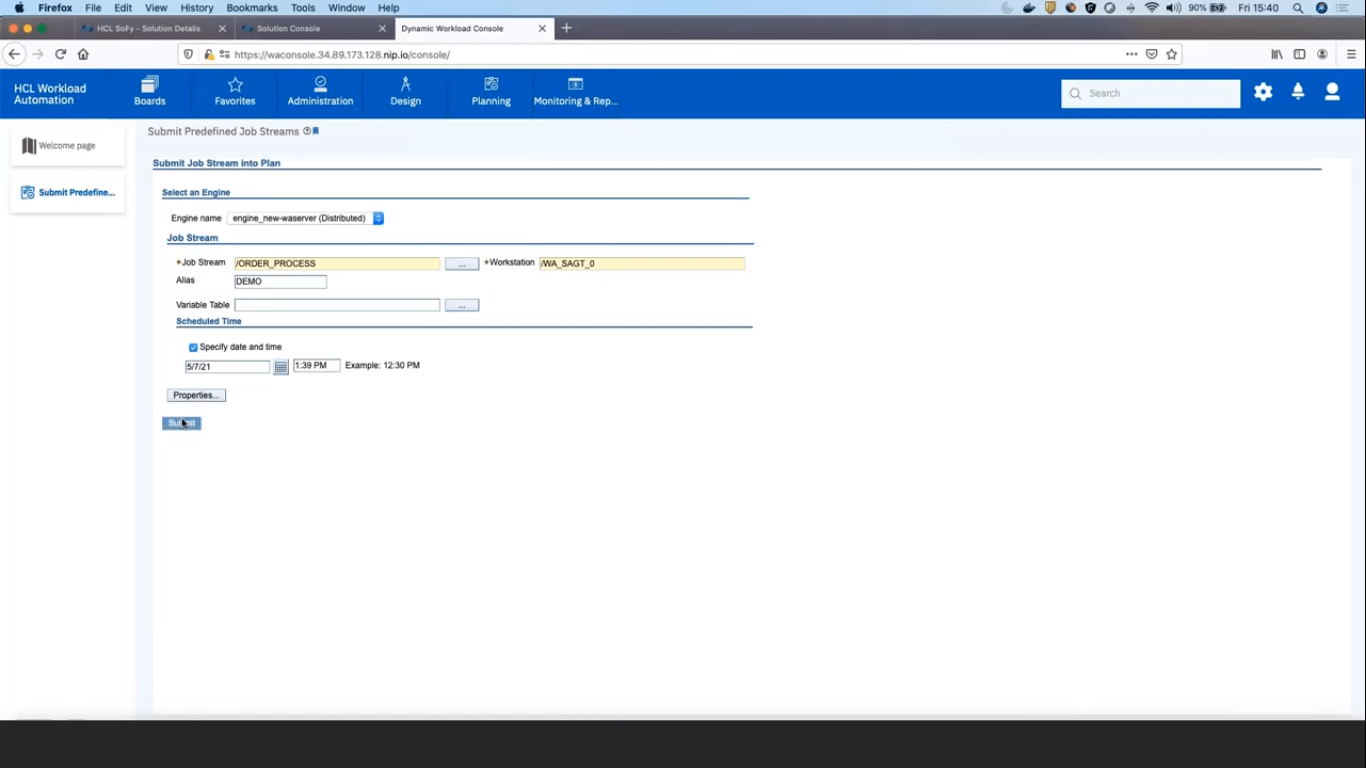

submit page

Fig 7: Submit Page

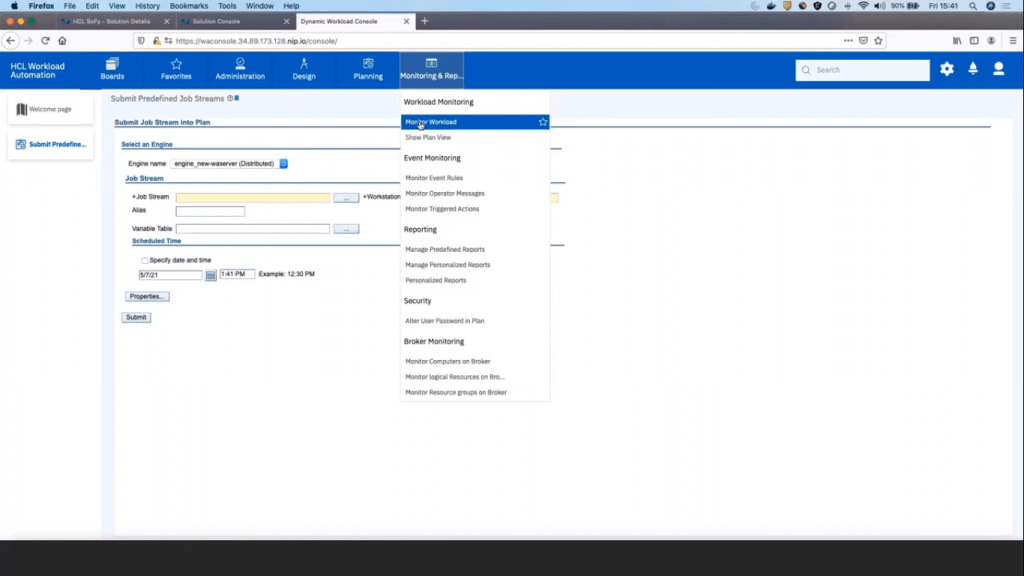

In the Monitor Workload Page, you can create your monitoring query to track the status of the execution of your submitted job stream.

monitoring query

Fig 8: Monitoring Query

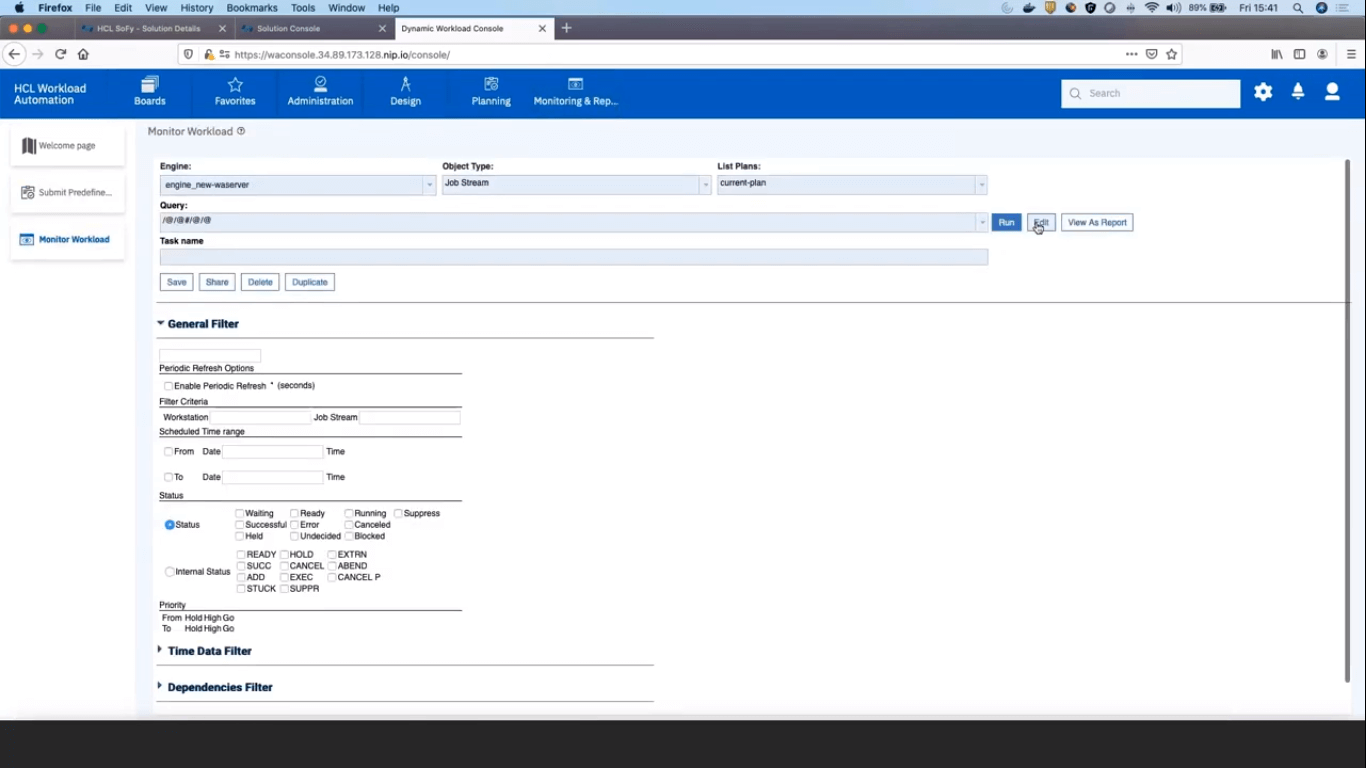

Edit the query to filter for the job stream name. It’s possible to create and save tailored queries for a flexible detailed monitoring or a consolidated overview of the overall execution.

edit the query

Fig 9: Edit the Query

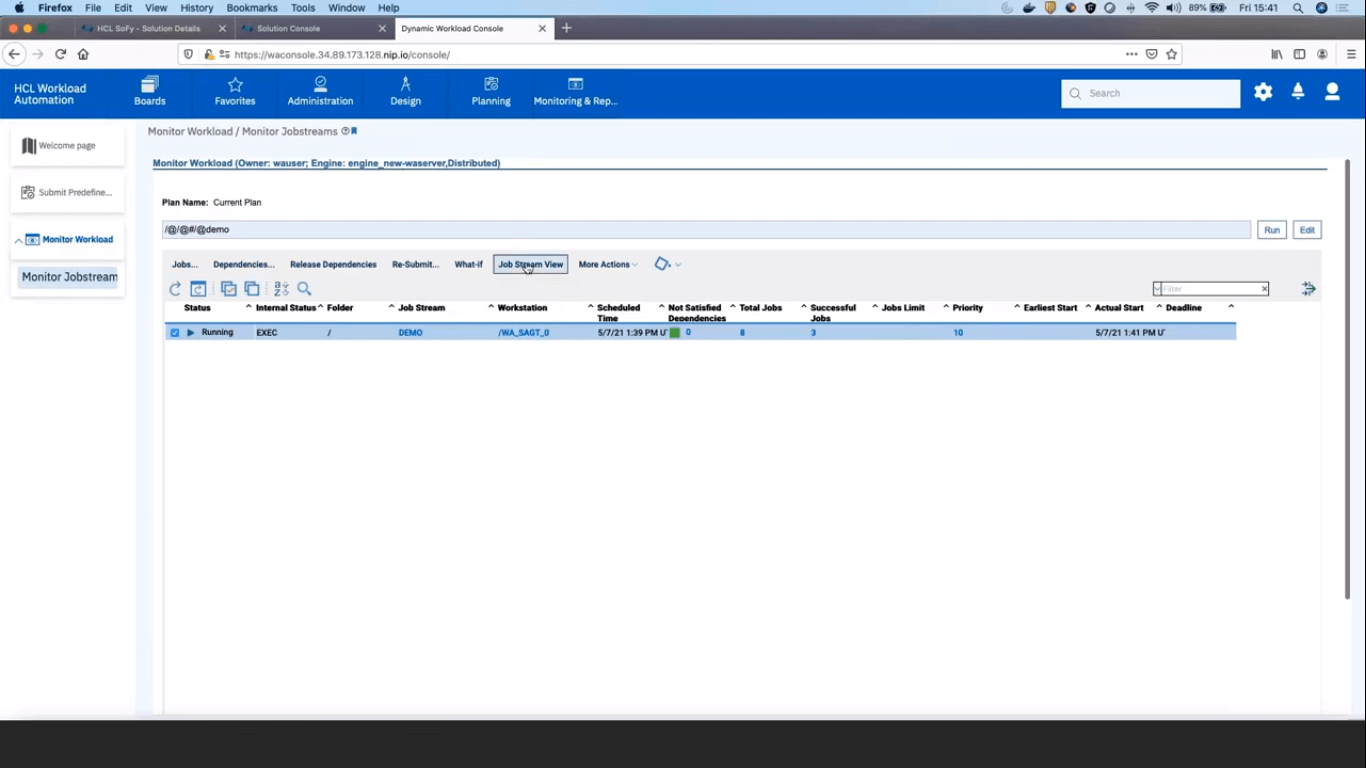

When the job stream is in execution, open the job stream view, to easily display connections between the steps and interact with them

job stream executing

Fig 10: Job Stream Executing

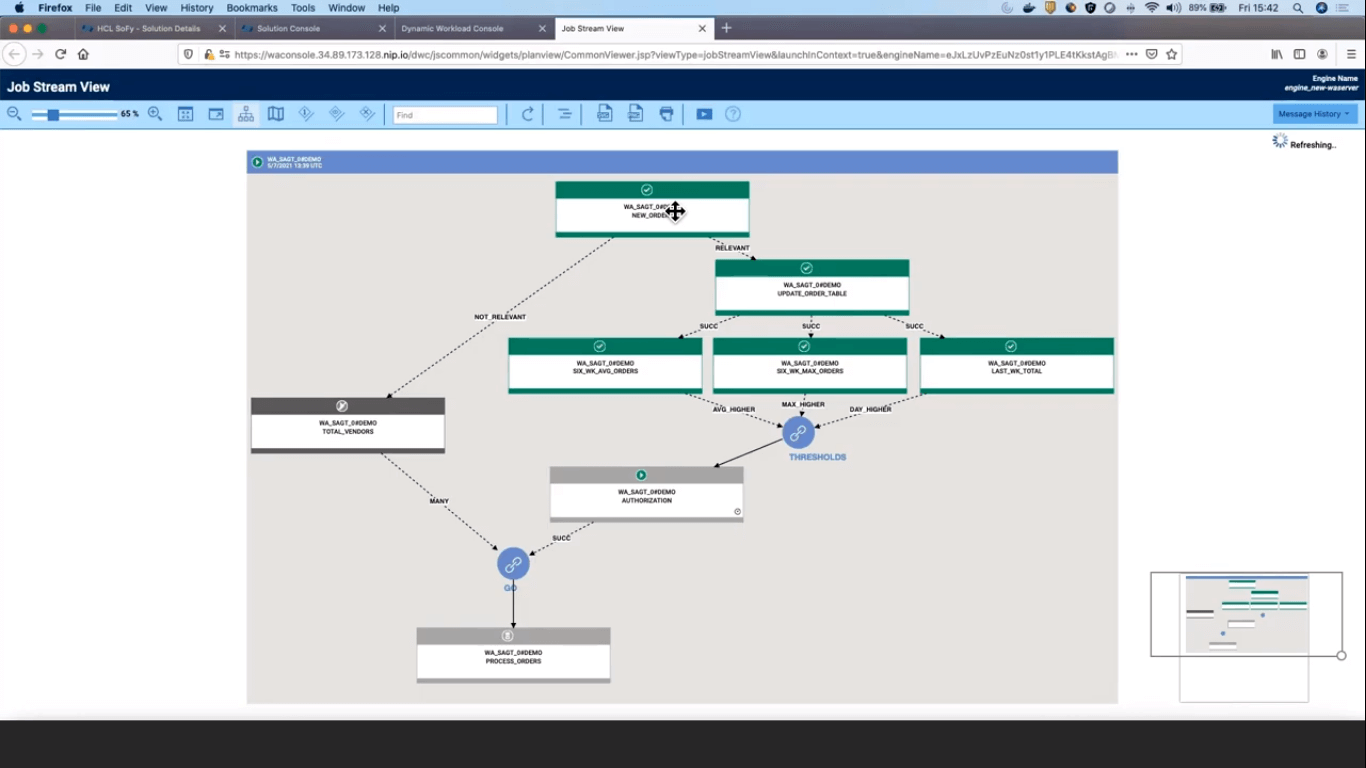

In the job stream view, the flow prepared for this scenario is checking dynamically if the total amount of orders is relevant or not. The not relevant branch in this scenario is suppressed and the total value of the orders is challenged against 3 conditions and the flow will proceed if at least 2 of them are met.

job stream view

Fig 11: Job Stream View

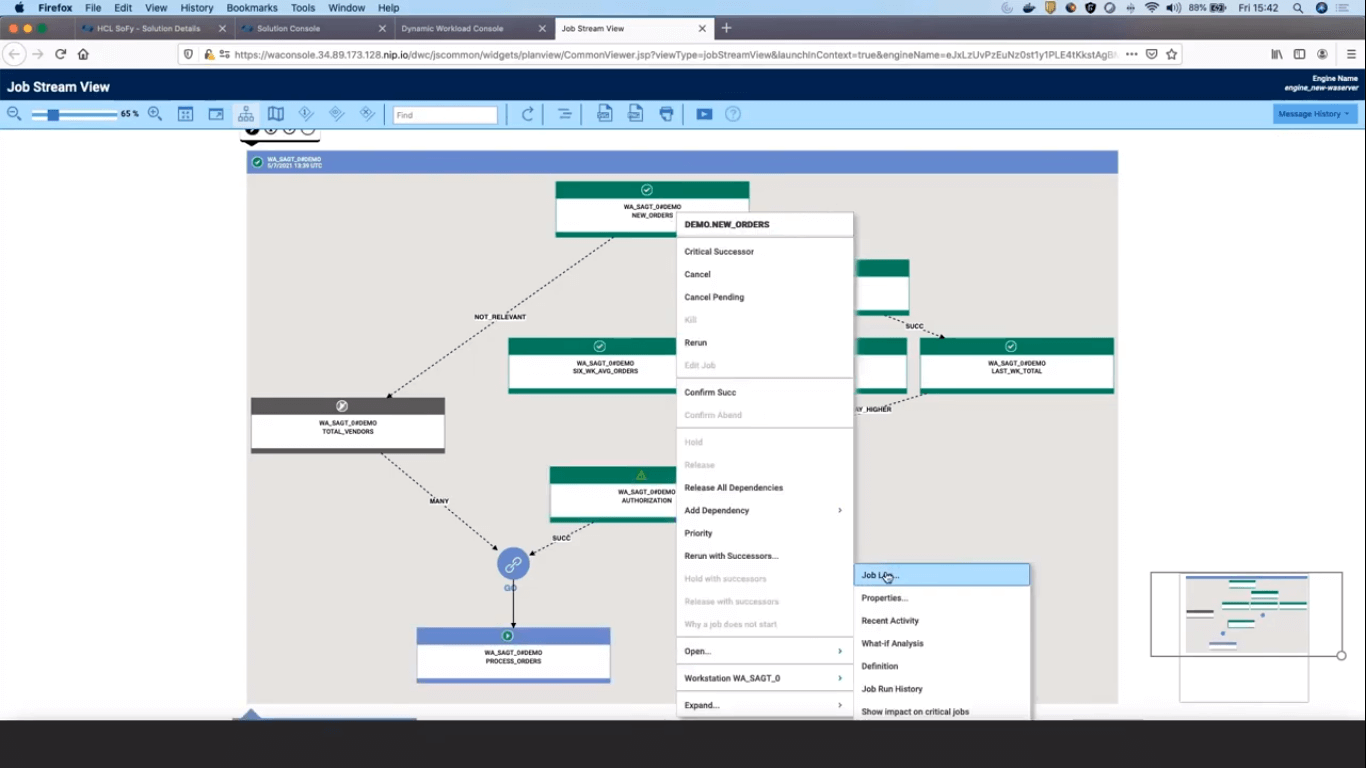

Right click on the job box, open job logs to explore the step output and check if the condition is met or not.

job log

Fig 12: Job Log

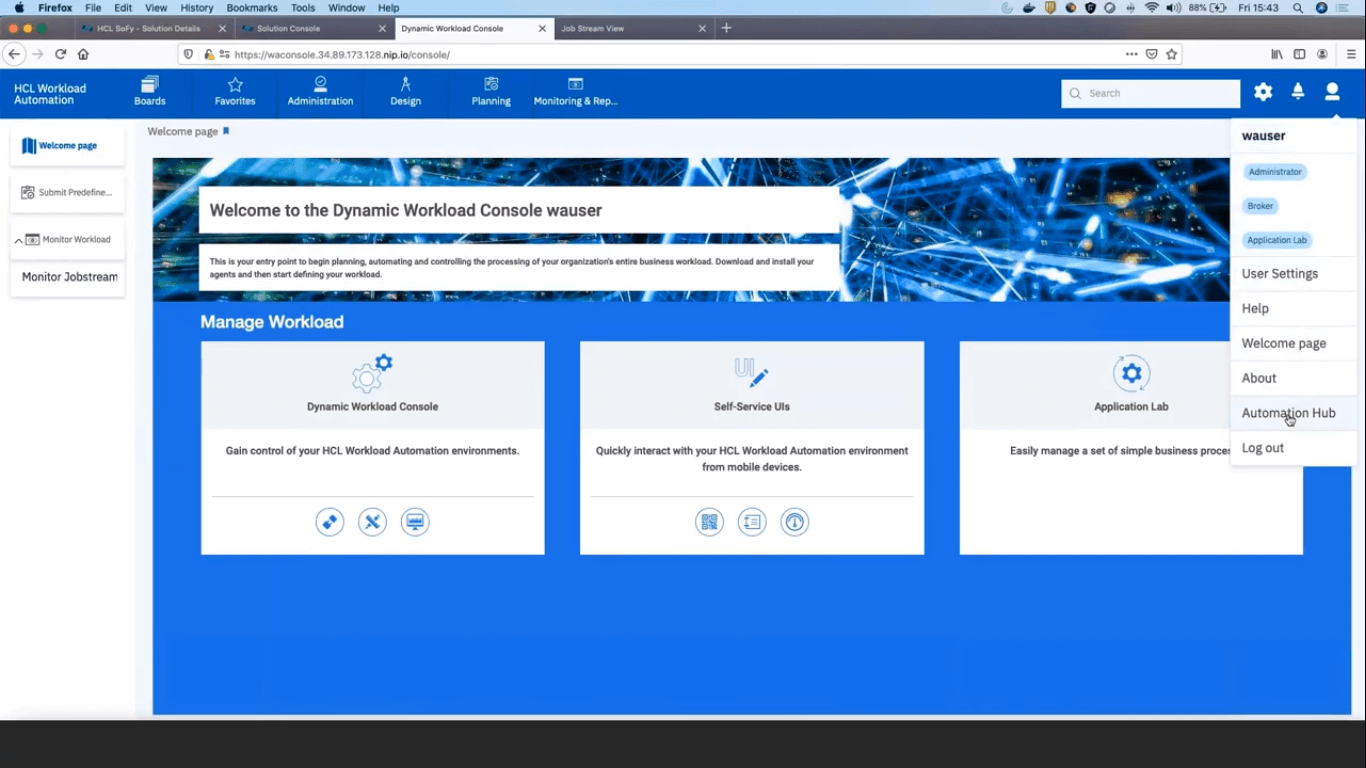

Head back to the Dynamic Workload Console page and open the profile menu and then click on Automation Hub. Automation Hub is the market place where you can get new job plugins to create end-to-end automated workflows. You can also create new plugins by downloading our software development kit and be a part of this growing community.

dynamic workload console

Fig 13: Dynamic Workload Console

The Scheduler Perspective

As a scheduler, your mission is to model end-to-end processes and interconnect business flows.

With the demo, you will learn to:

  • Create different job types
  • Model flows with conditional dependencies
  • Use workload folders to efficiently organize workloads and delegate business control

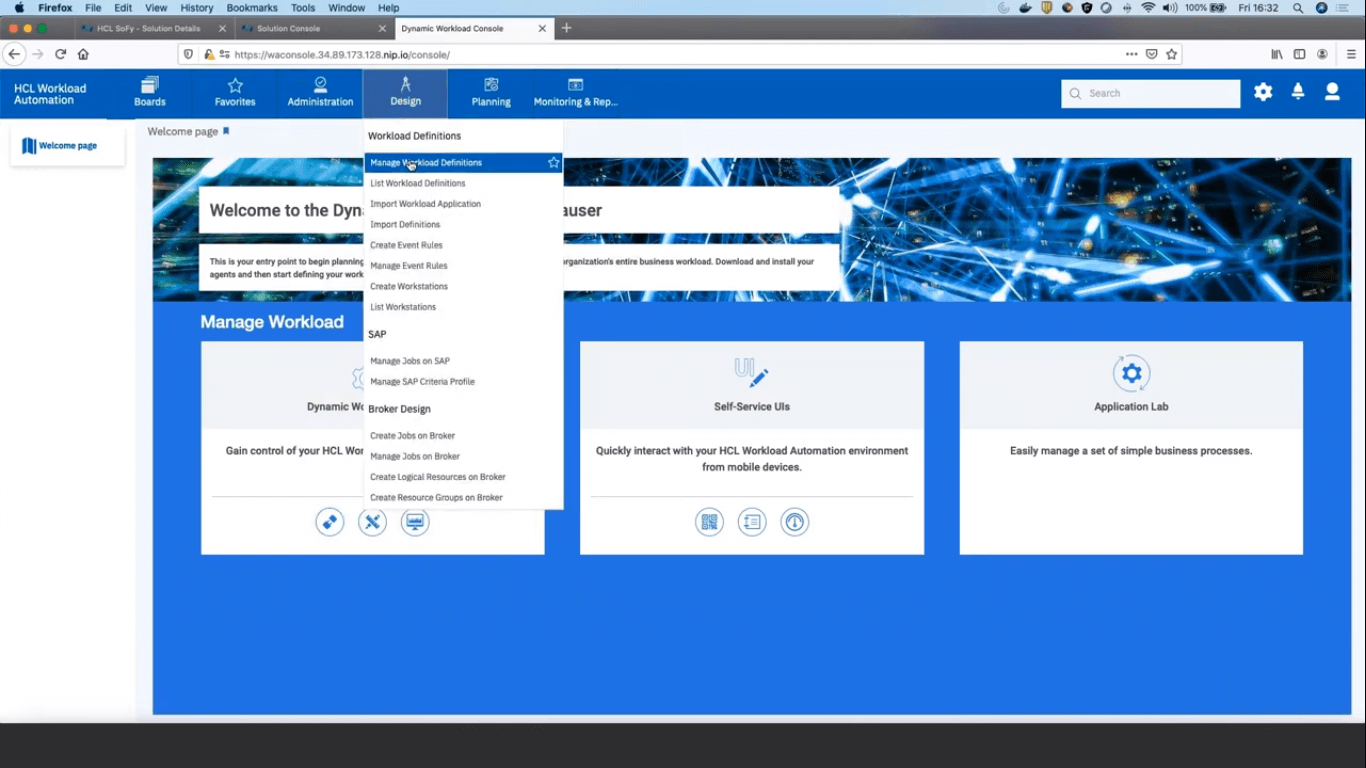

So, let’s see how we created the demo flow using the job plugins available in our automation hub. Open the design menu and click on Manage Workload Definitions and land into the Workload Designer. If you have any pop ups disable in your browser, please enable them.

dynamic console workload definitions

Fig 14: Dynamic Workload Console – Workload Definitions

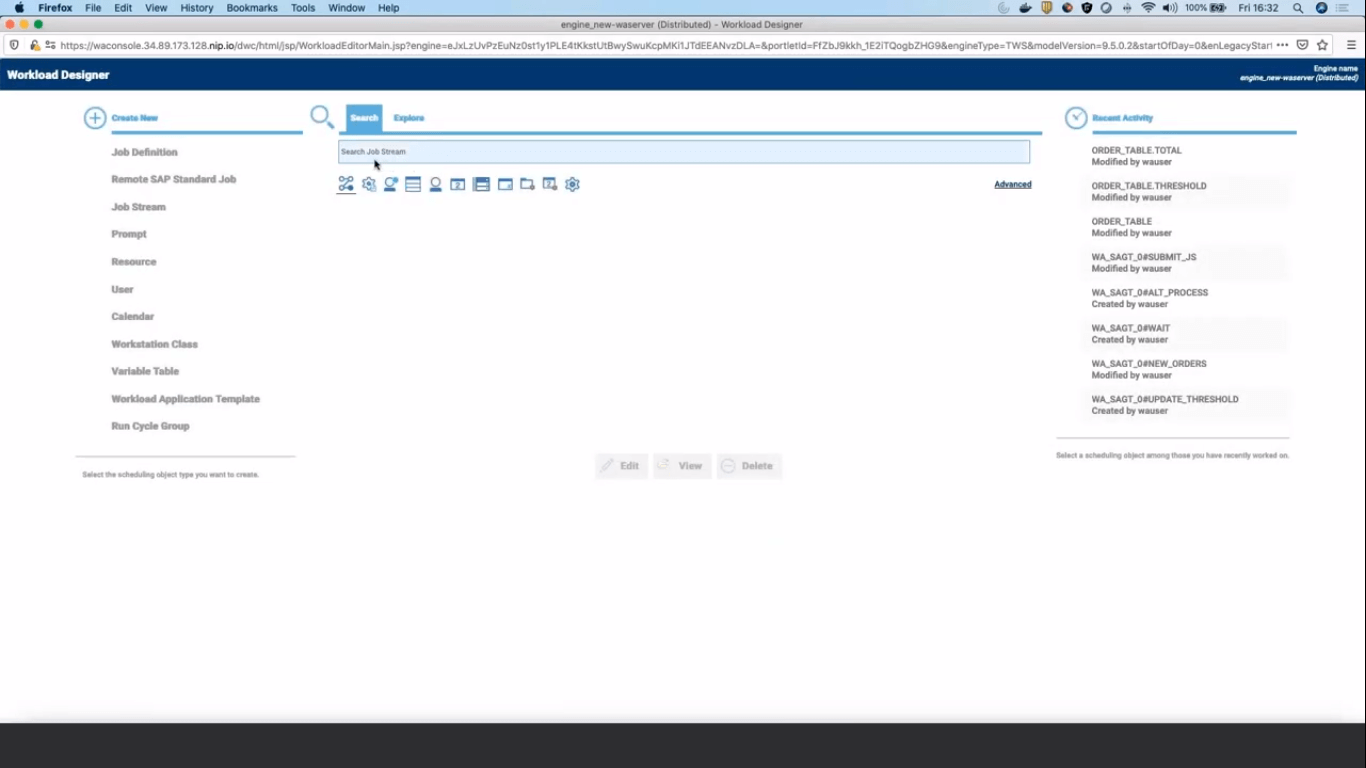

The workload designer is the page where you can create jobs and connect them into job streams where scheduling rules and options are defined.

workload designer

Fig 15: Workload Designer

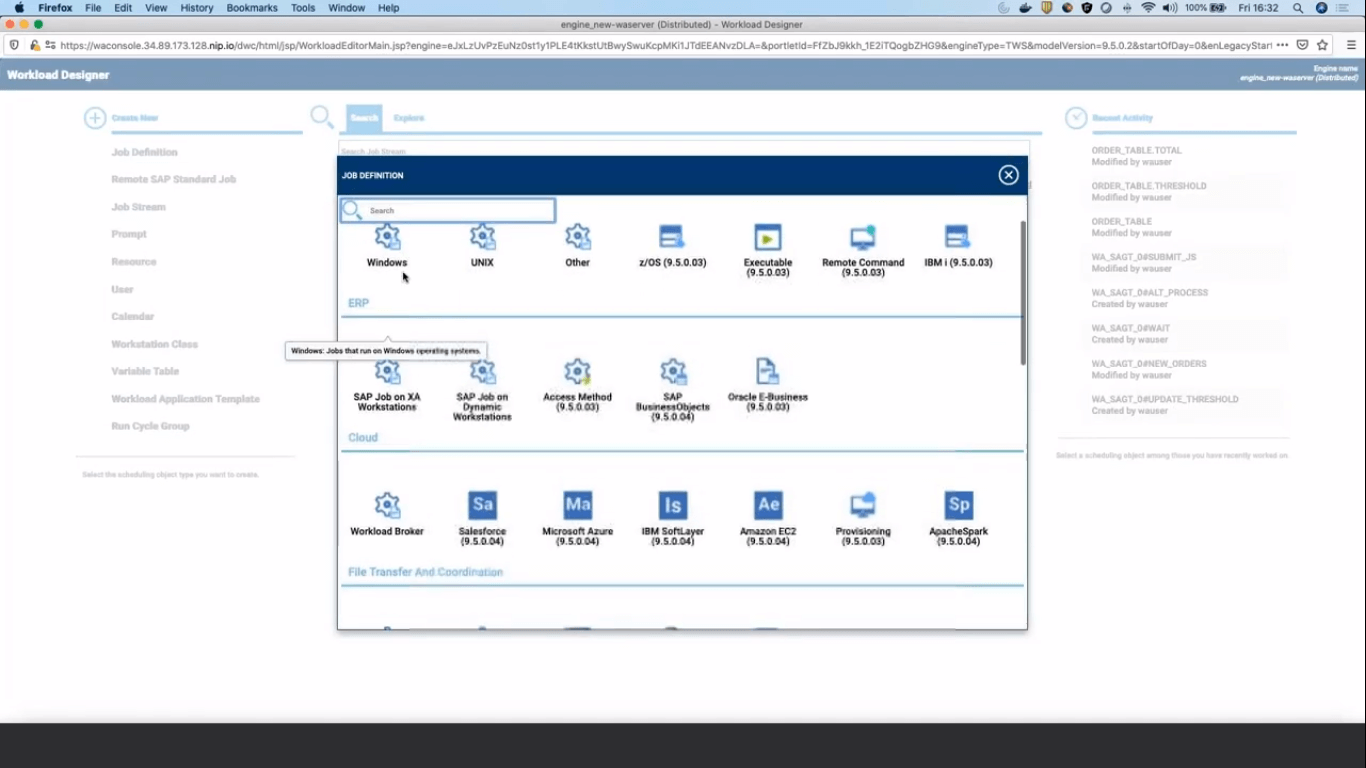

By Selecting Job Definition, you can see a list of all the installed job plugins, here you will find any new plugin you are adding to the Workload Automation.

job definition

Fig 16: Job Definition

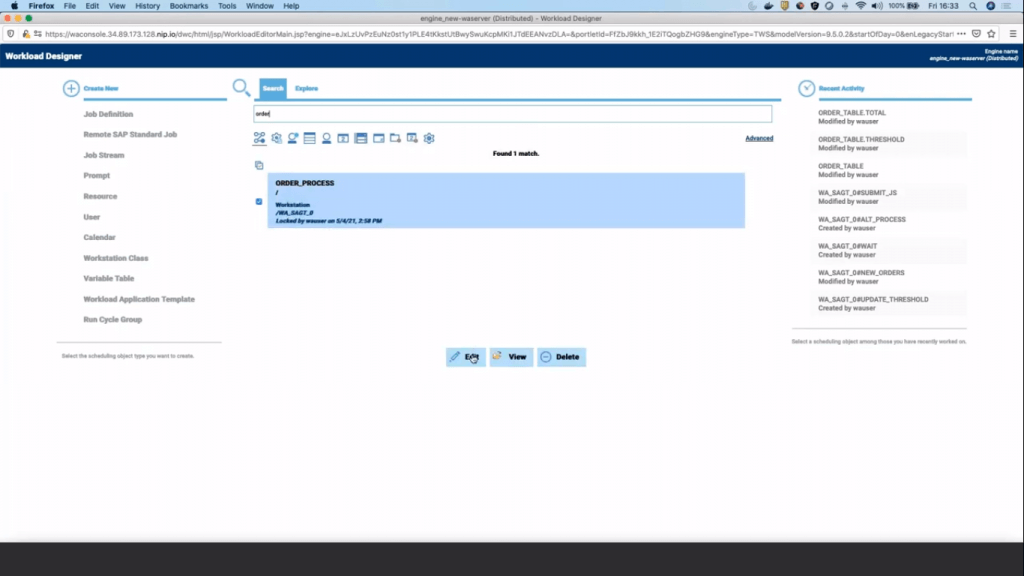

Let’s look inside our demo job stream: search for order_process and open it in edit mode.

demo job stream

Fig 17: Demo Job Stream

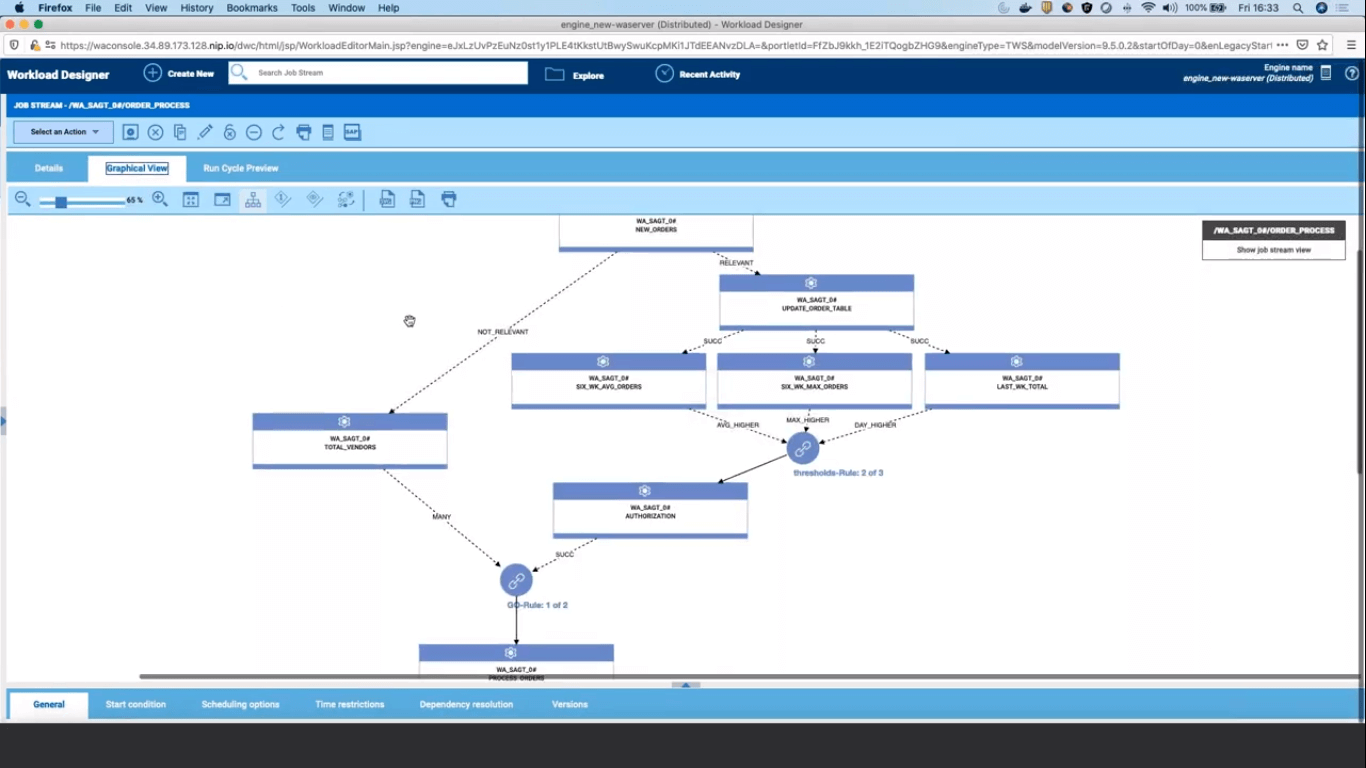

The user can work in a list or graphical mode. Switch to the graphical view tab. Here you can see exactly the same flow you have monitored in the first part of this demo.

graphical view tab

Fig 18: Graphical View Tab

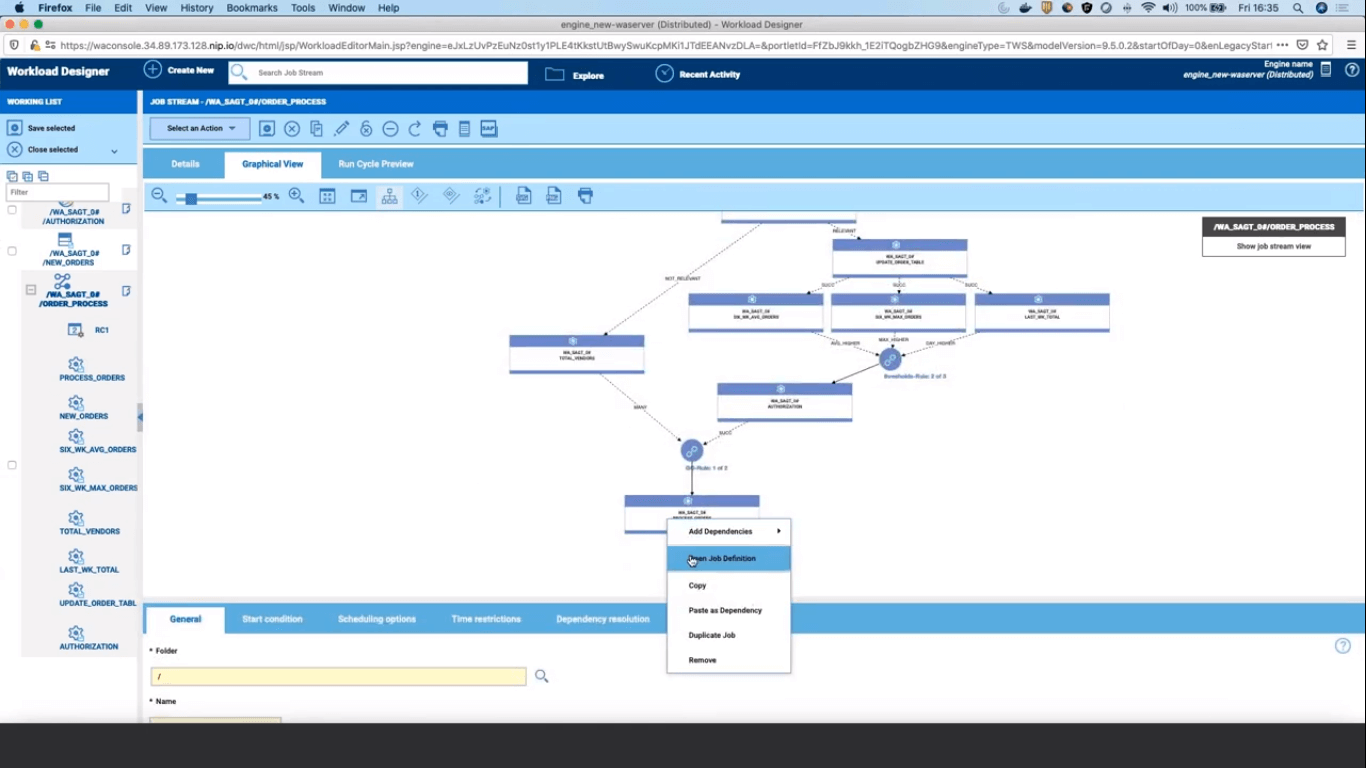

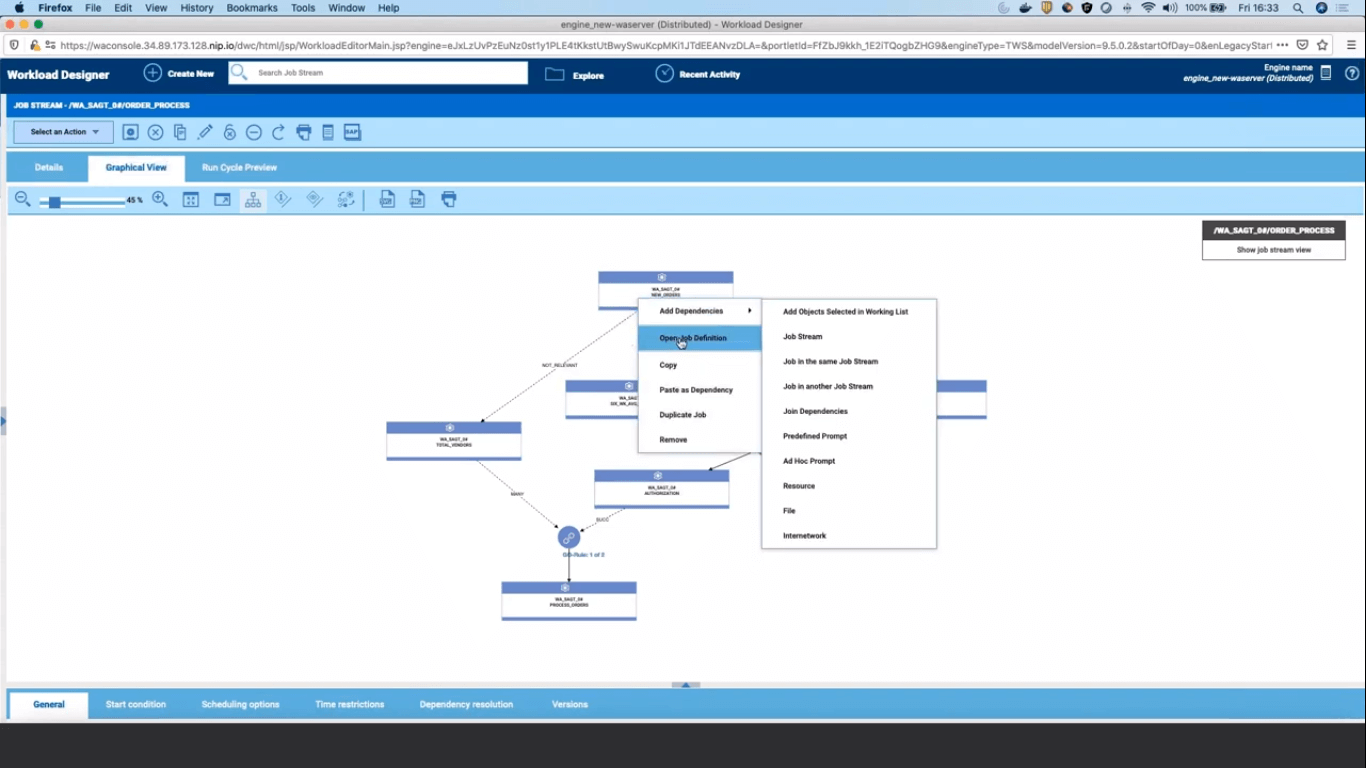

We will now explore a few jobs to visualize how our job type are simple and flexible. Right click on the topmost job box and open the job definition.

job definition

Fig 19: Job Definition

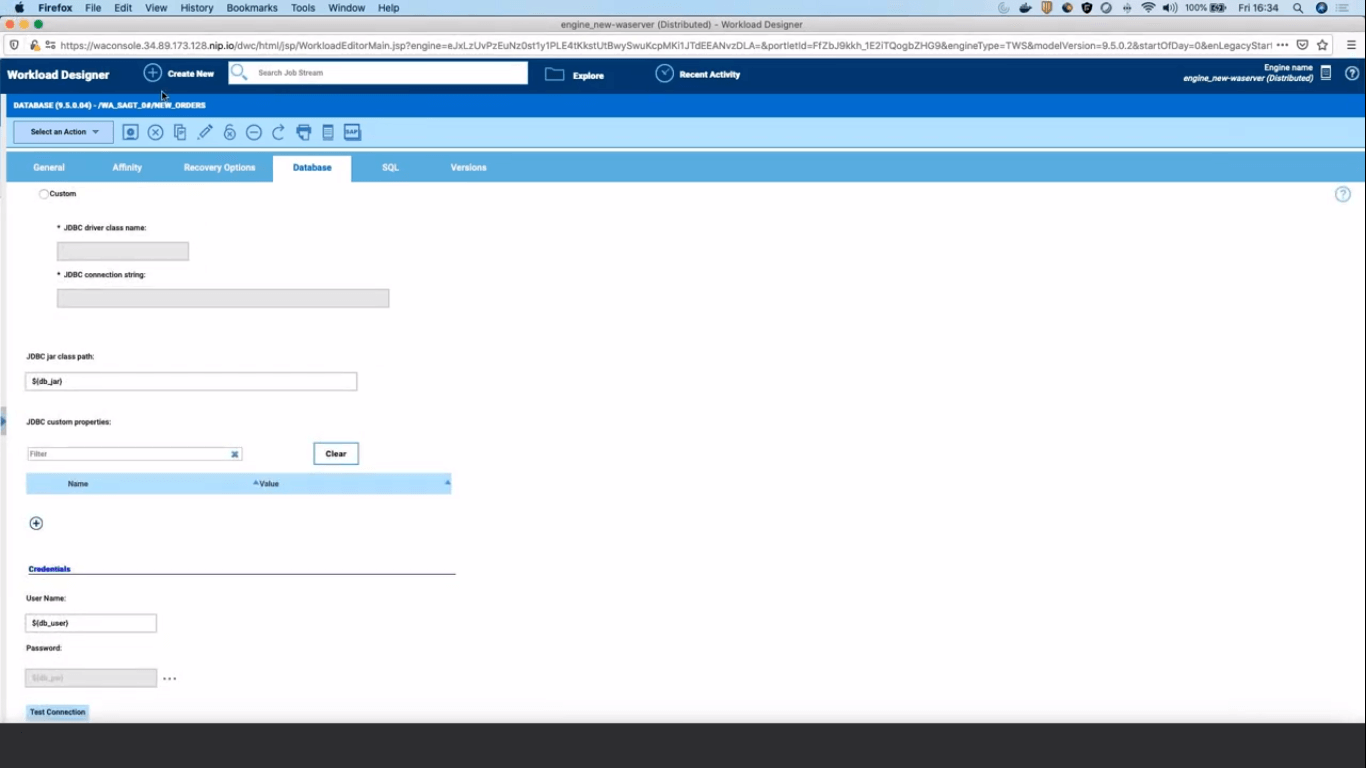

This is a database job type, and from the database tab the user defines the credentials to connect to a remote database.

connect to remote database

Fig 20: Connect to Remote Database

In this example the job calls an SQL query that you can visualize in the SQL tab where you can also call a stored procedure and eventually save the result of the query into an output file.

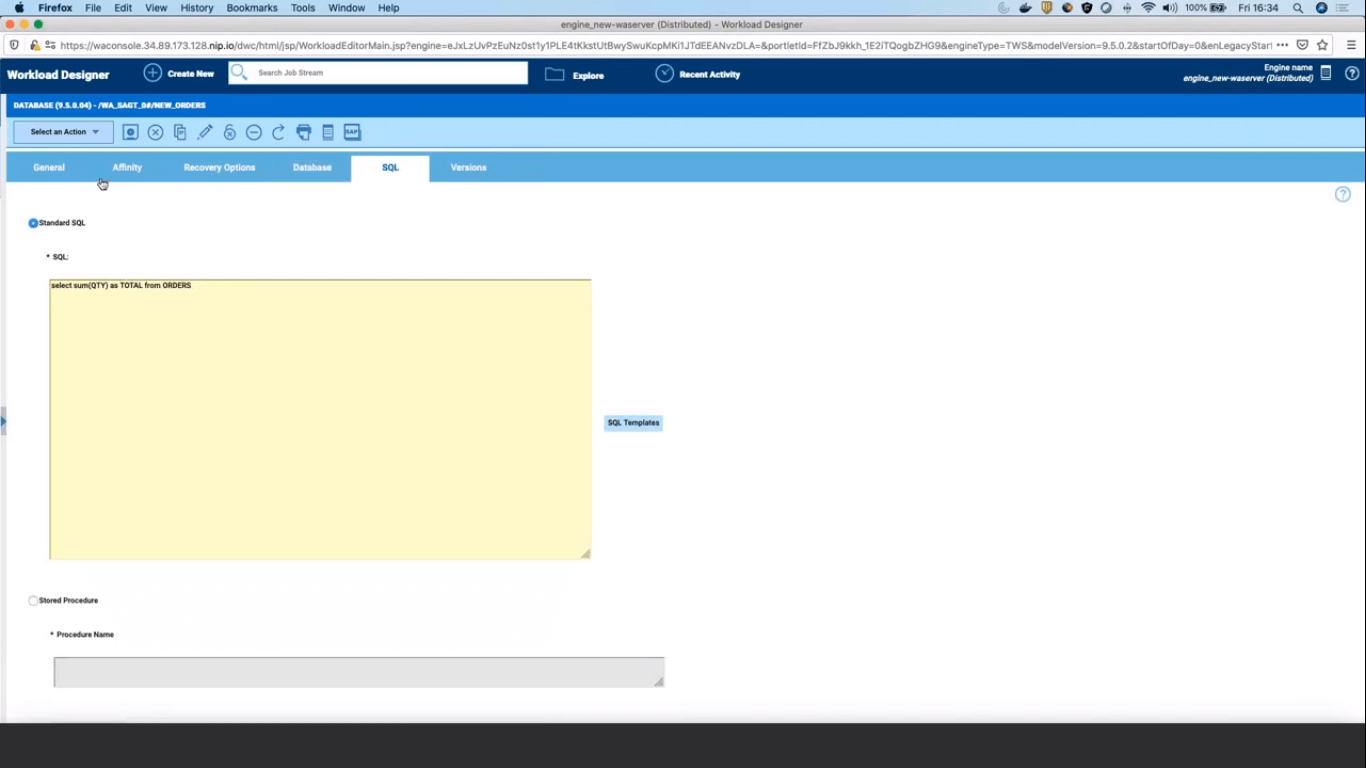

SQL tab

Fig 21: SQL Tab

Switch to the general tab to check how the total value is used to evaluate relevant and not relevant conditions, these conditions are not affecting the job status, but they are used to branch the processing flow.

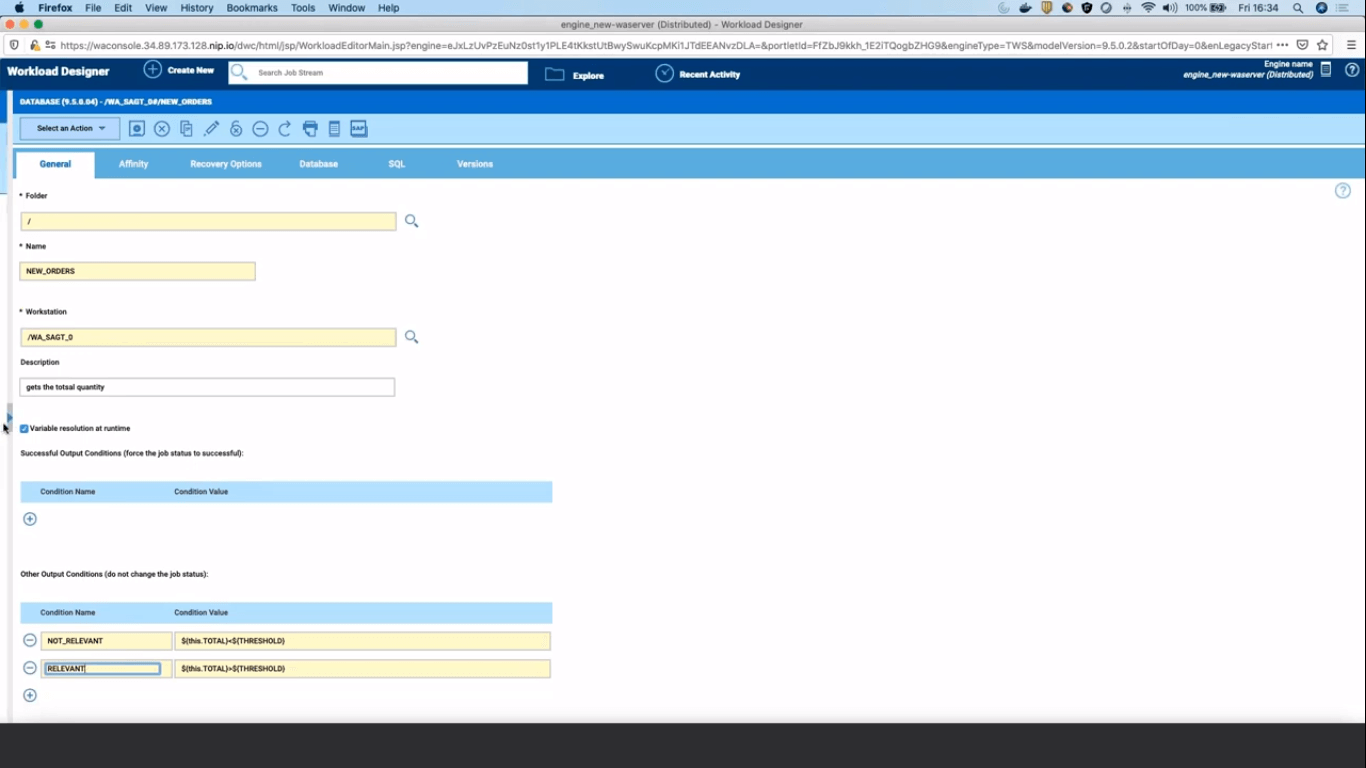

general tab

Fig 22: General Tab

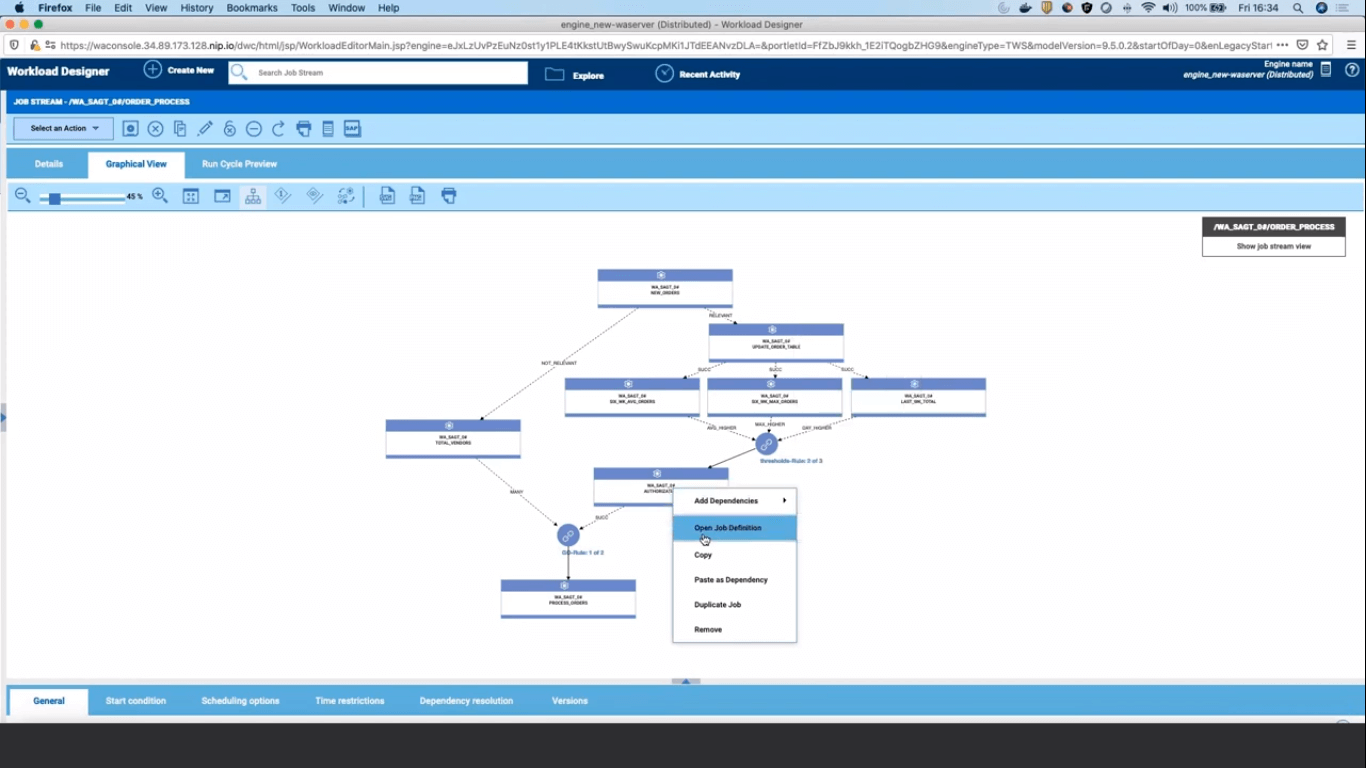

Return back to the job stream graphical view and open the “authorization” job definition.

graphical view

Fig 23: Graphical View

This is a restful job, you need to specify the URL, the method and other advanced options if applicable. You don’t require any coding skill to design jobs using plugins!

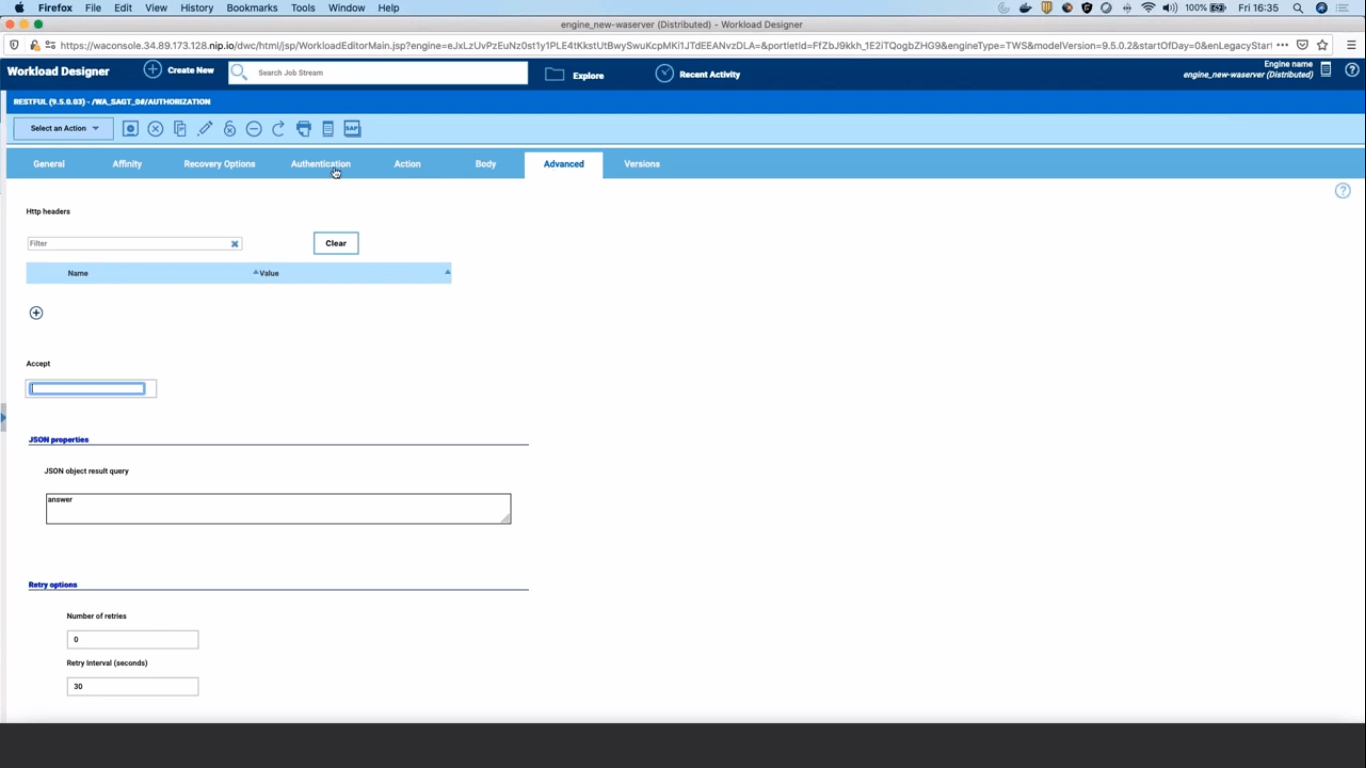

advanced section

Fig 24: Advanced Section

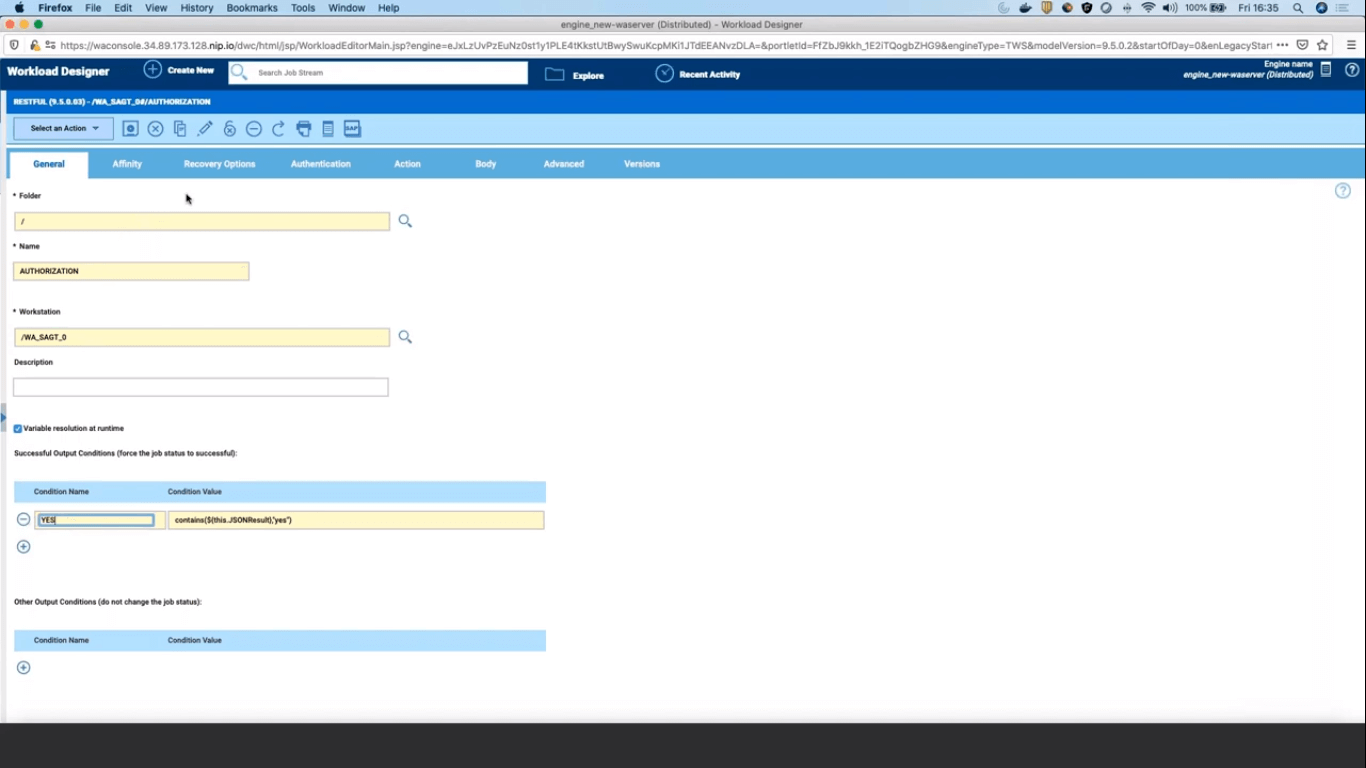

In the general tab you can see that a condition on the answer from the REST server is affecting the job status.

general tab

Fig 25: General Tab

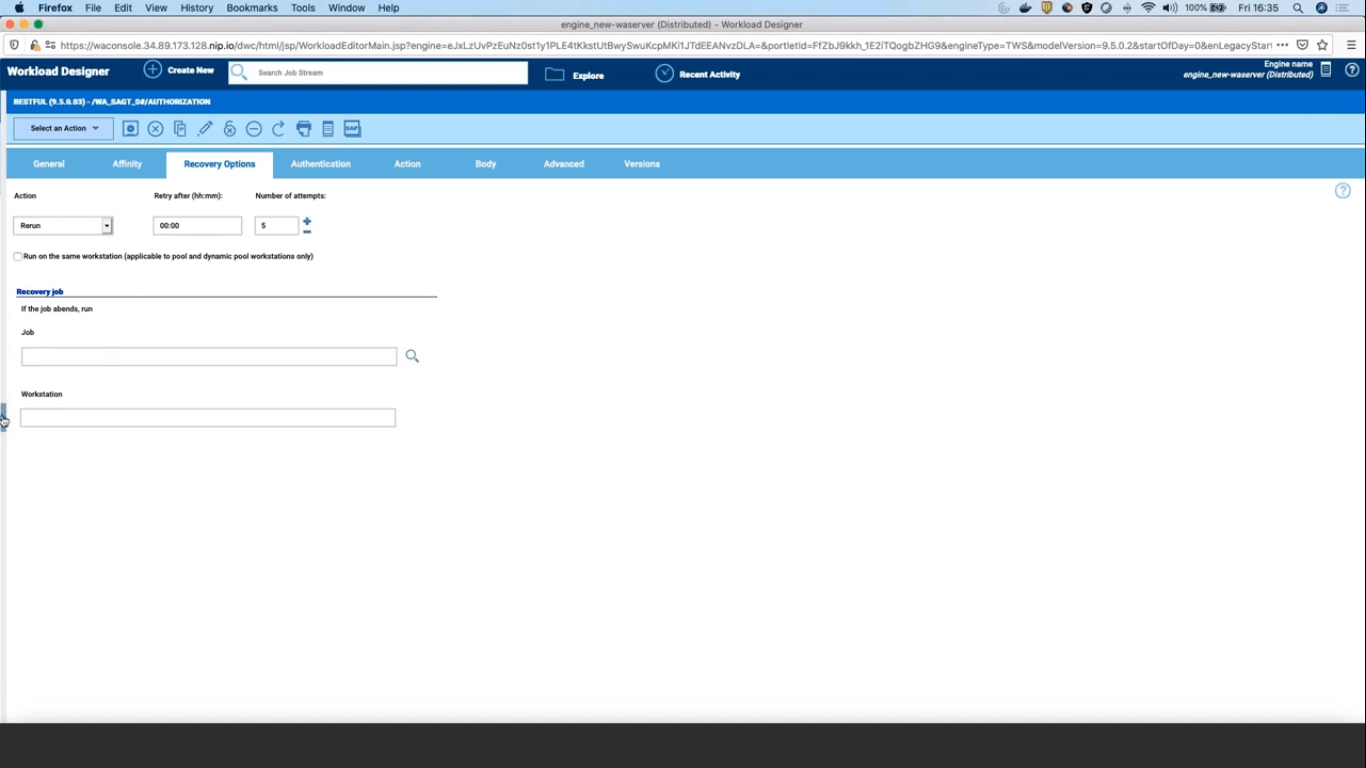

In case of any failure switch to the recovery tab to discover the recovery options. Here the job will attempt 5 times to obtain a yes answer to be successfully executed. All HCL Workload Automation jobs have the automatic recovery feature

automatic recovery

Fig 26: Automatic Recovery

Open now the job definition of the last step of the flow

graphical view

Fig 27: Graphical View

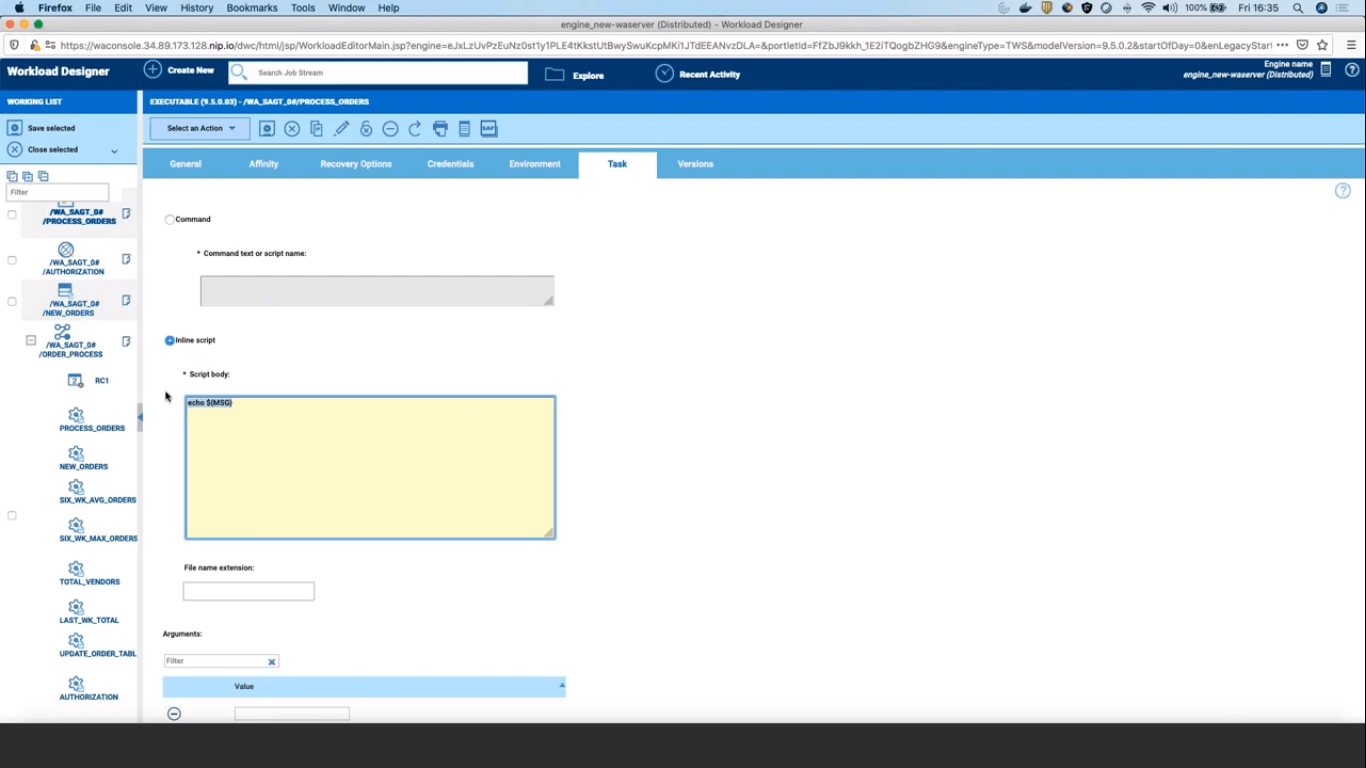

This job dumps the value of a variable parameter.

variable parameter

Fig 28: Variable Parameter

Open the order_table to see the variables declaration associated to the demo job stream.

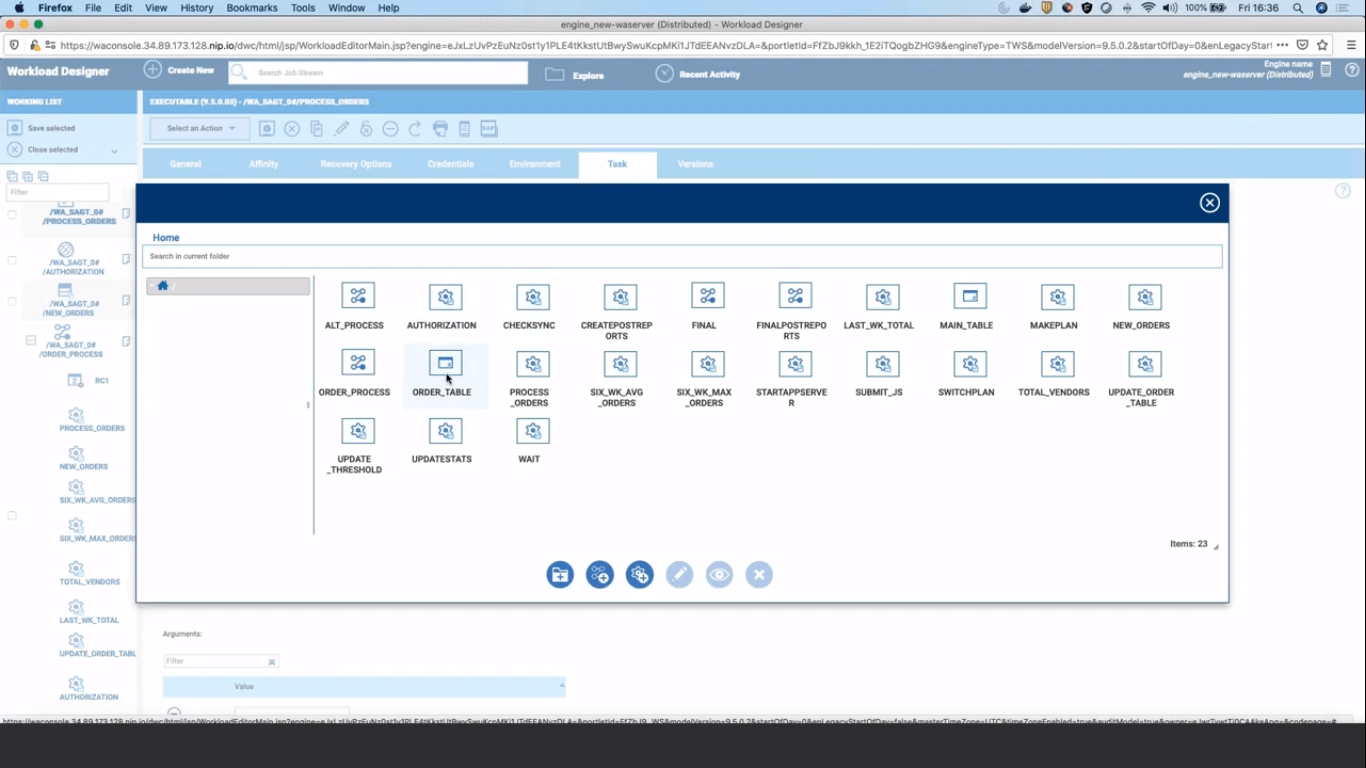

order table

Fig 29: Order Table

This brings us to the end of 1st blog of the product demo series. Stay tuned for the next blog which will showcase the operator’s and application architect’s perspective.

Click here to access the SoFy Demo page

Click here to Try 90 Day Free Trial of HCL Workload Automation

Listen to HWA Podcast series at https://workloadautomation.buzzsprout.com/
